Simultaneous Localisation and Mapping (SLAM)
Intergrating odometry, IMU, and RGBD camera depth data (Asus Xtion - similar to Microsoft Kinect) as psudo Laser range finder, on the Q.Bo robot to perform ultra low cost SLAM. Dev on Linux with ROS (Robot Operating System) and gmapping/hector_SLAM

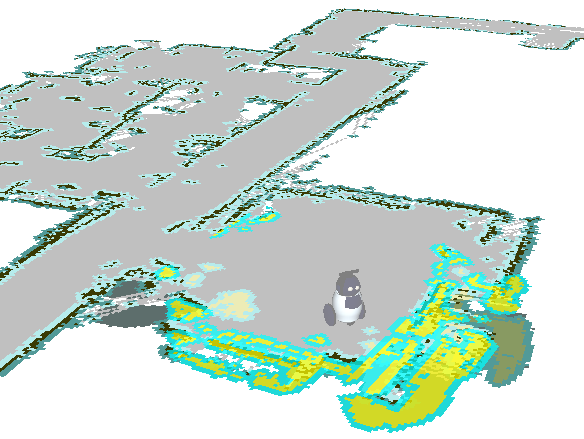

Example resulting map (Cambridge Engineering department SigProc corridor)
Path planning and Frontier based exploration

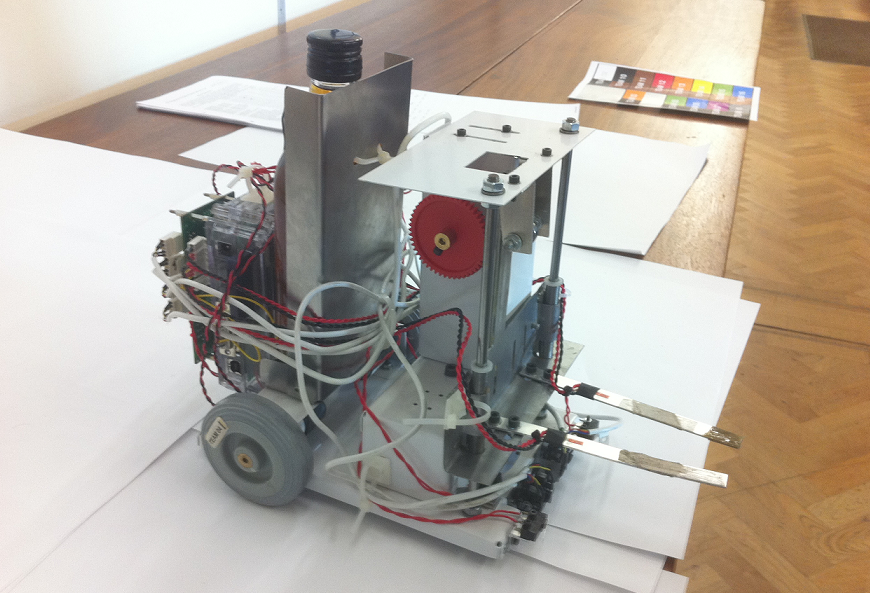

Autonomous guided vehicle project
A line following robot. Designed, built, and tasked with autonomous item sorting in a constrained playfield. Based on Intel embedded hardware

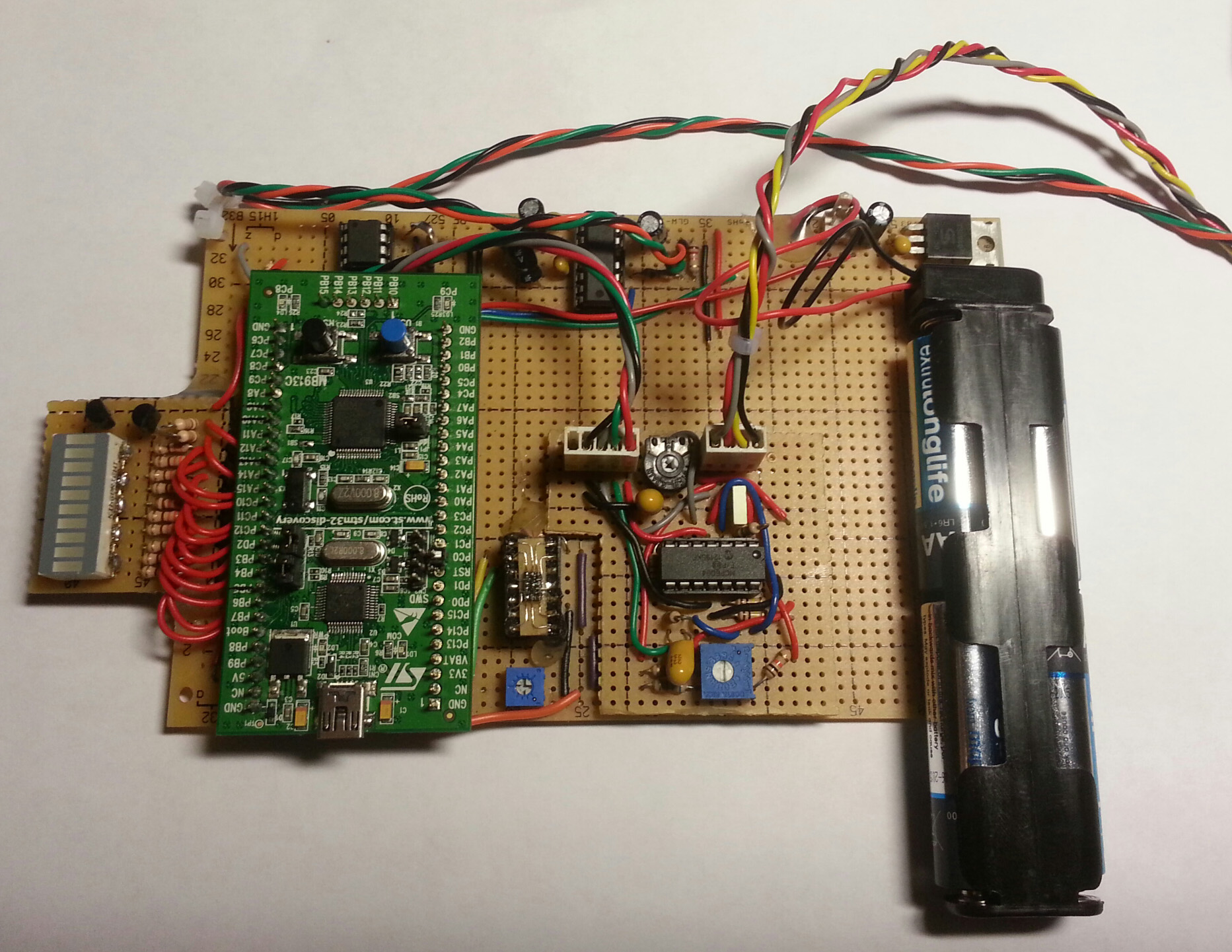

FitFriend - mobile health monitoring system
Personal fitness electronic trainer device. Photoplethysmograph heart rate monitor, accelerometer step counter, incentivised games, calorie estimation. ARM (STM32) MCU based

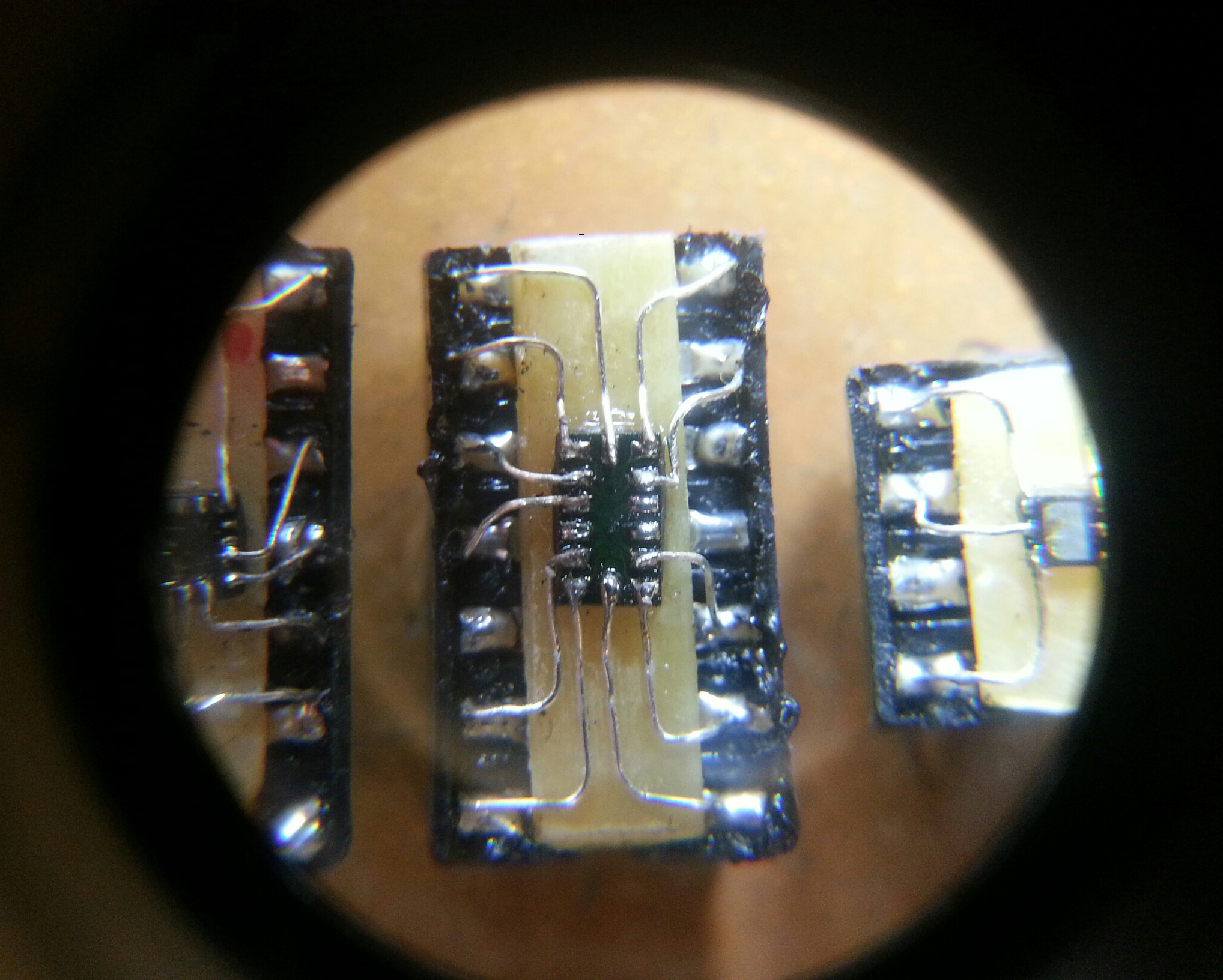

'Deadbug' soldered smd components

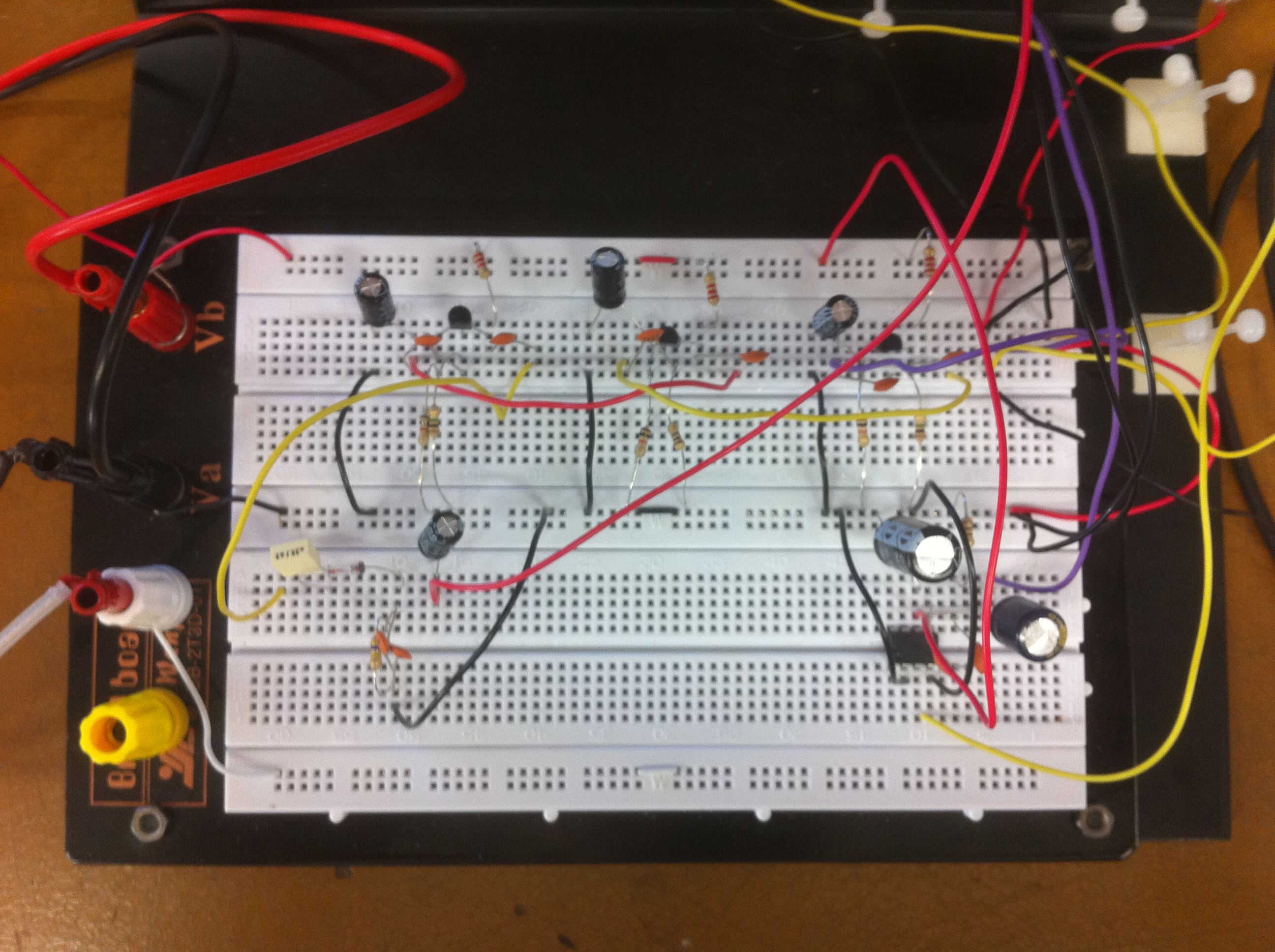

AM Radio receiver
Simple receiver that works pretty well

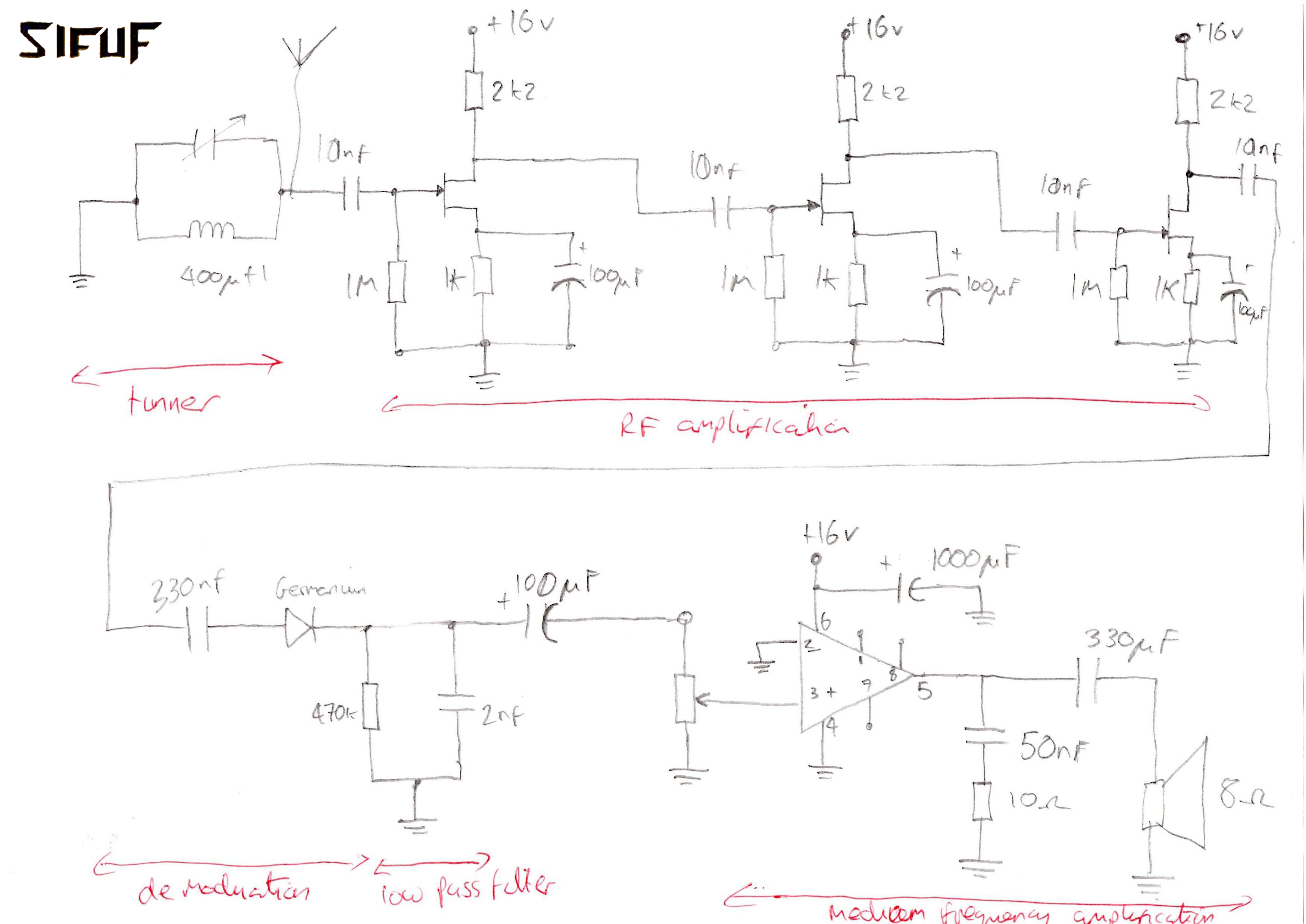

The circuit for those playing along at home...

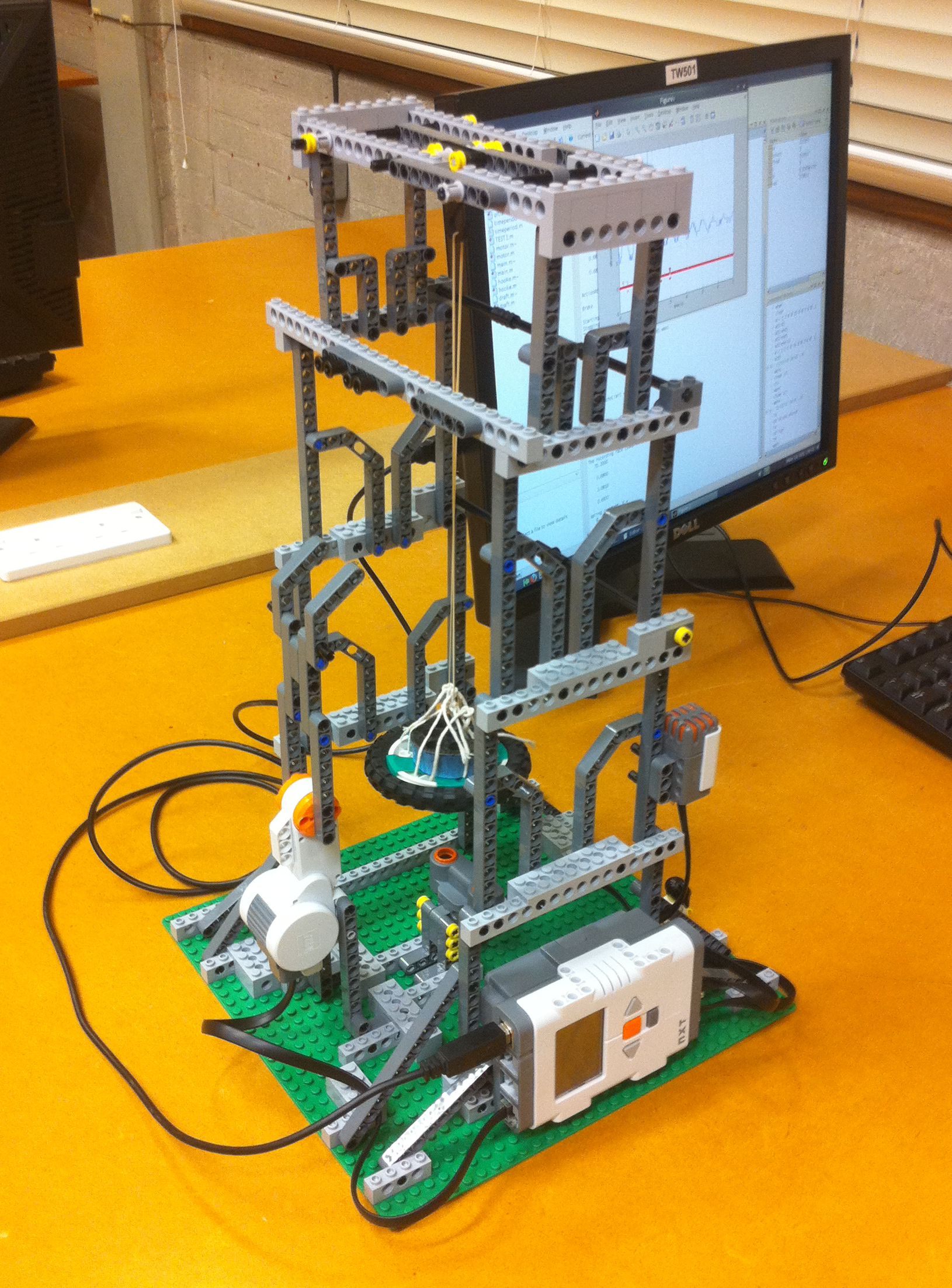

Lego NXT project
'Hooke's Tower' tensions and releases elastic bands, plots height vs time for suspended mass, measures oscillation period, and derives the spring constant
