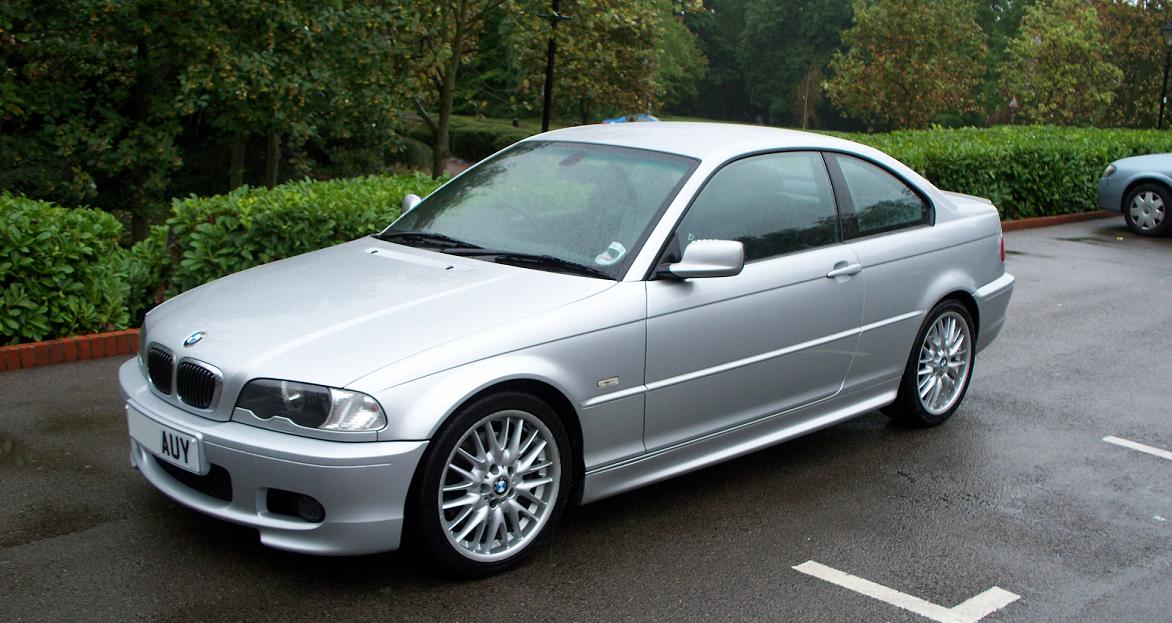

BMW 330ci car PC
The main challenge is to create a screen bezel that appears as if it were factory fitted. The rest of the install can be easily hidden under carpets/trim pieces
![](bmw/bmwmain.jpg)

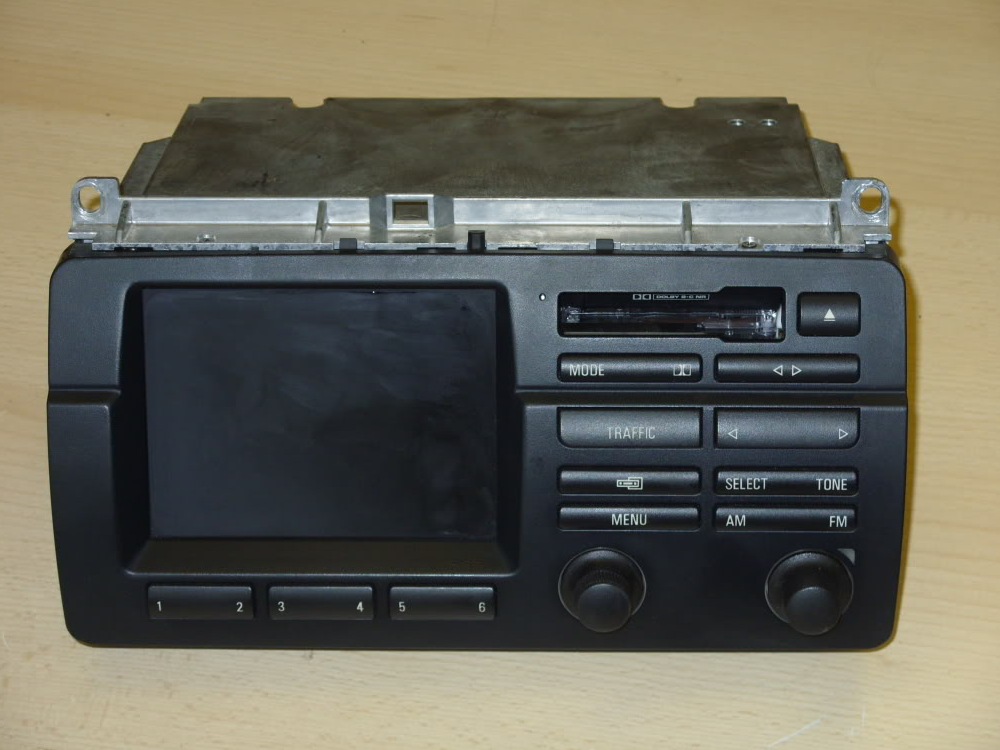

I decided to start with an original sat nav head unit as a base for the build
![](bmw/old.png)

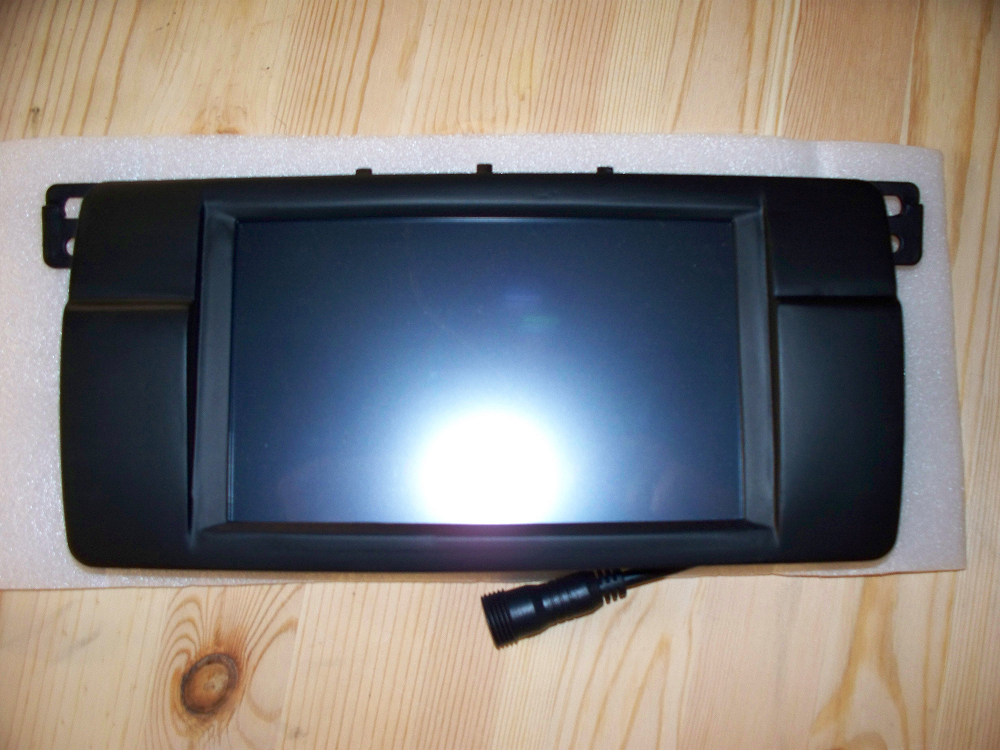

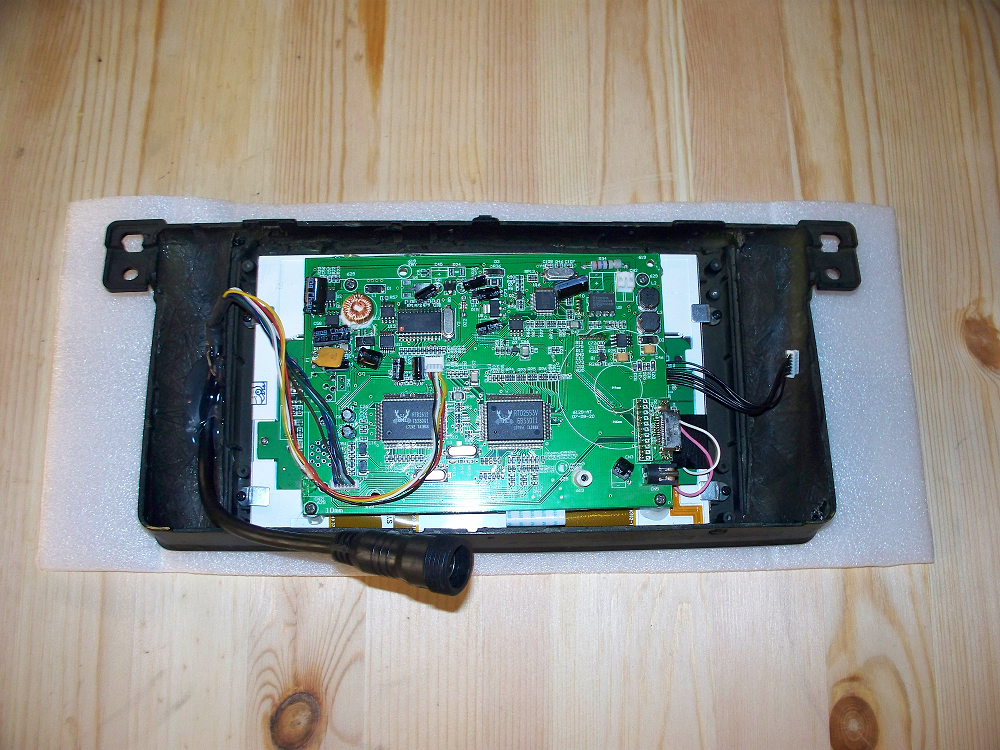

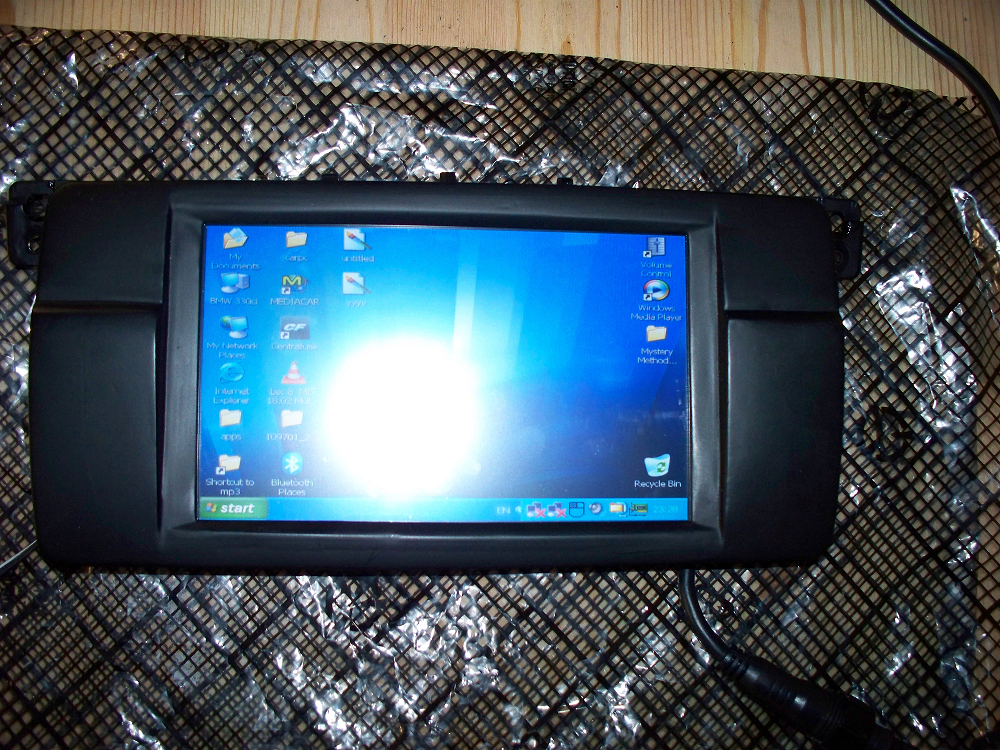

Which was then modifed into the following by cutting out plastic and crafting an internal frame for a 7" VGA touch screen using fibreglass and body filler. Primed and painted a matt black to match the original plastic as closely as possible
![](bmw/bezel1.png)
![](bmw/bezel2.png)
![](bmw/bezel3.png)
![](bmw/bezel4.png)

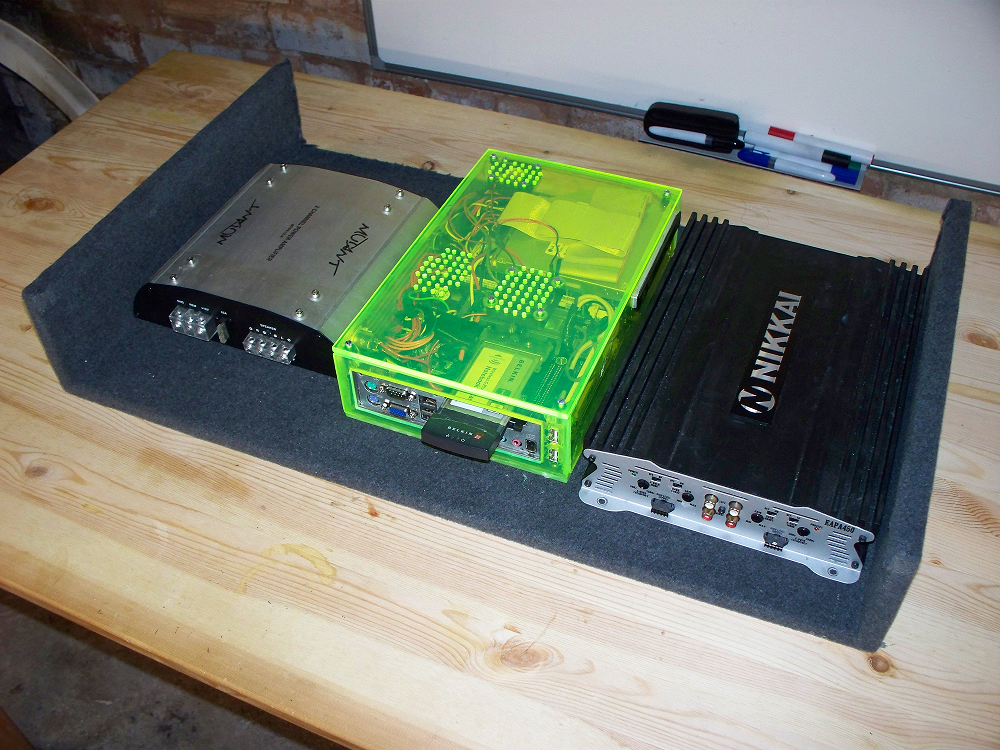

4.1 surround capable Mini ITX based pc, case built from sheet acrylic, installed in boot via carpeted MDF suspended shelf. PSU is a 12V ATX vehicle supply with ignition key on/shutdown triggering and several other useful features. Battery power is supplyed via a custom relay/fuse board
![](bmw/boot1.png)

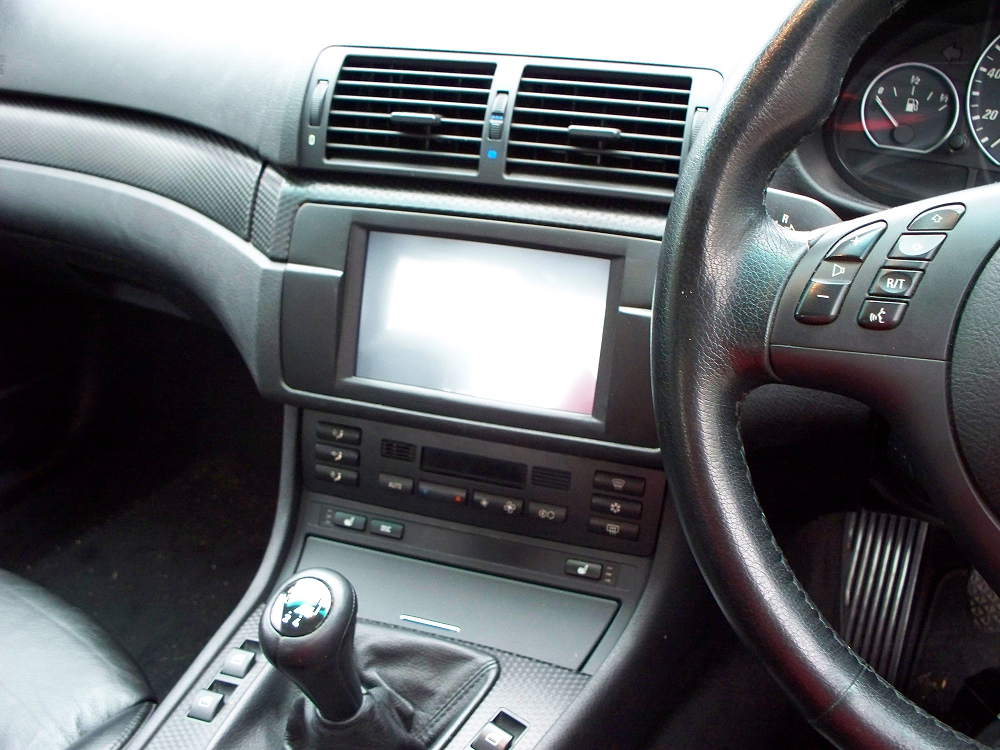

Installed in the vehicle. Controls (Volume pot, usb slot, screen setting control, hard power switch) mounted in the ash tray
![](bmw/installed1.png)
Astra 1.6 car PC

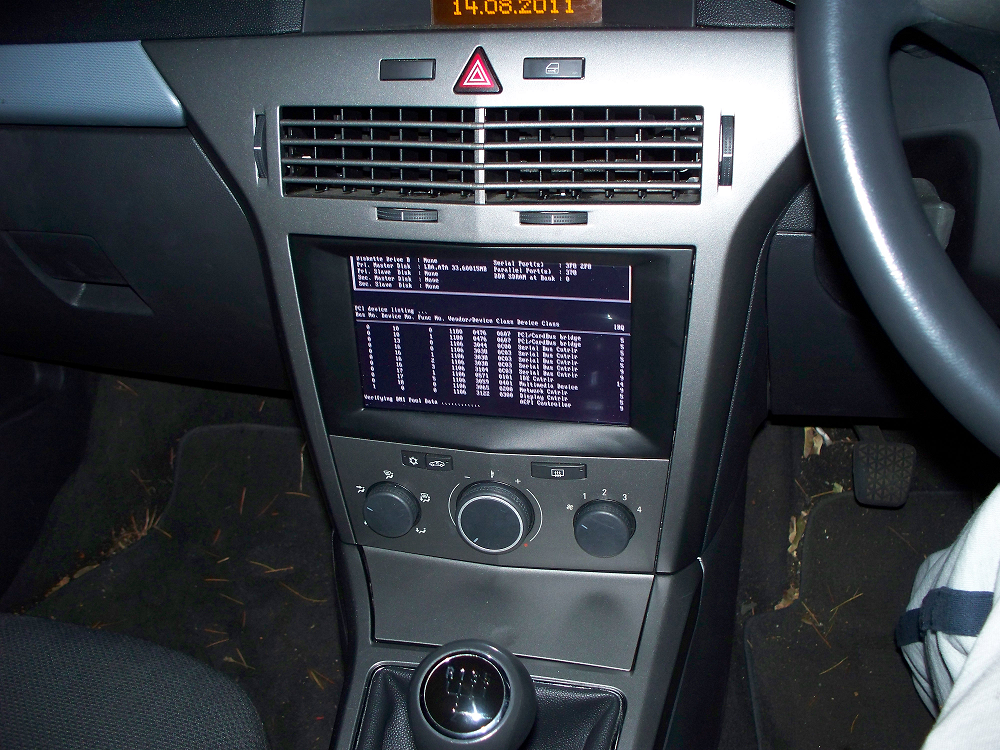

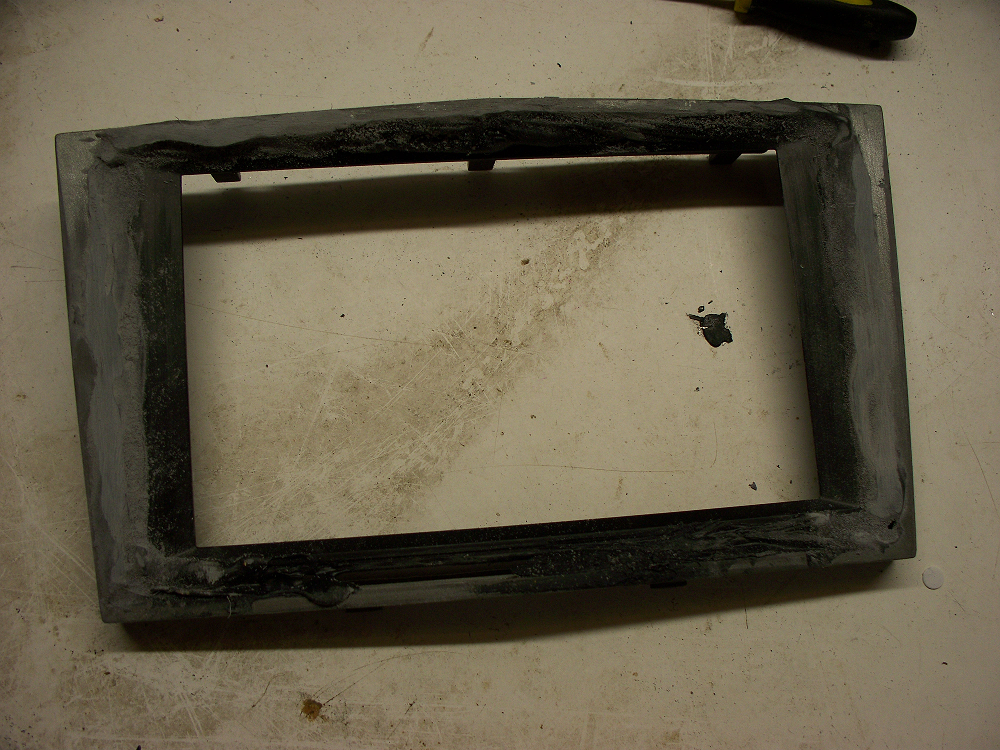

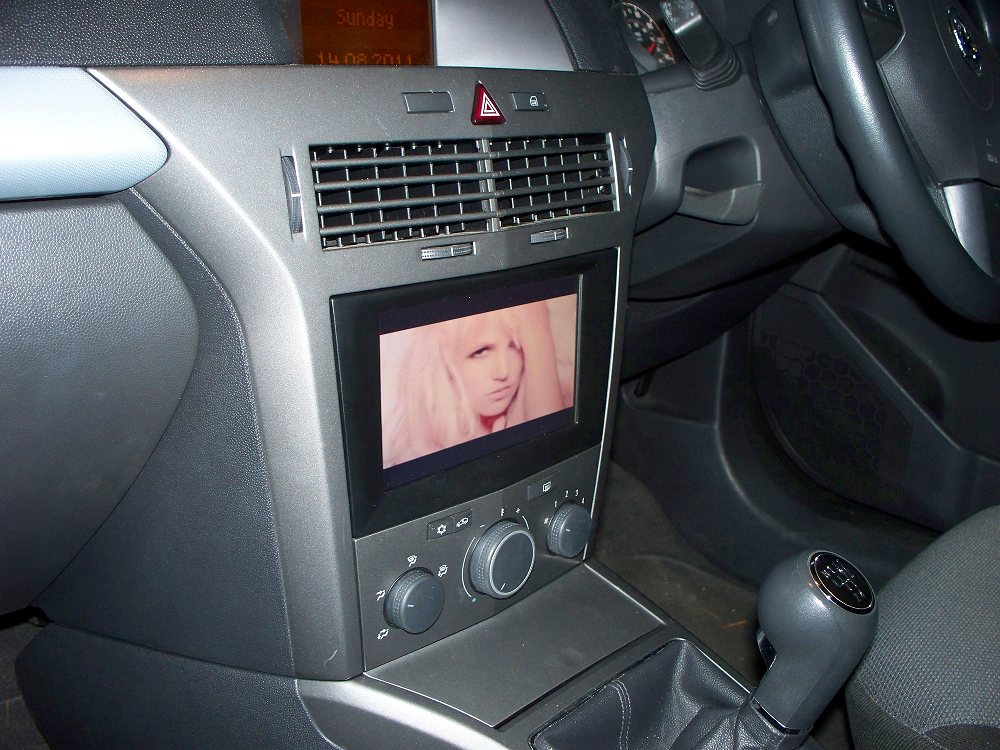

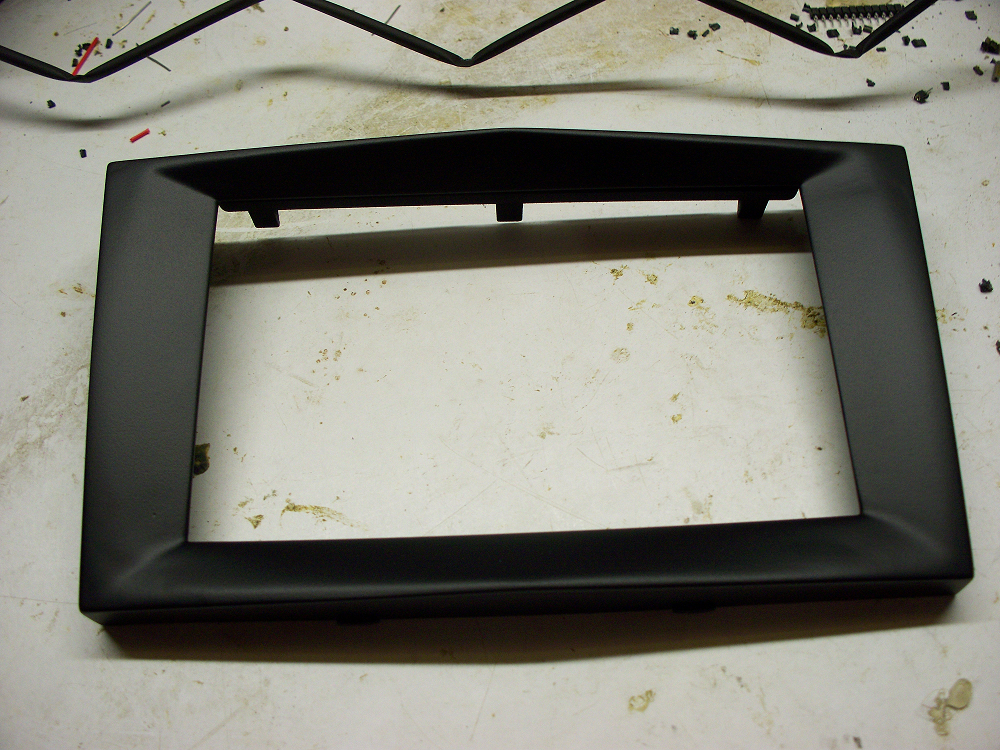

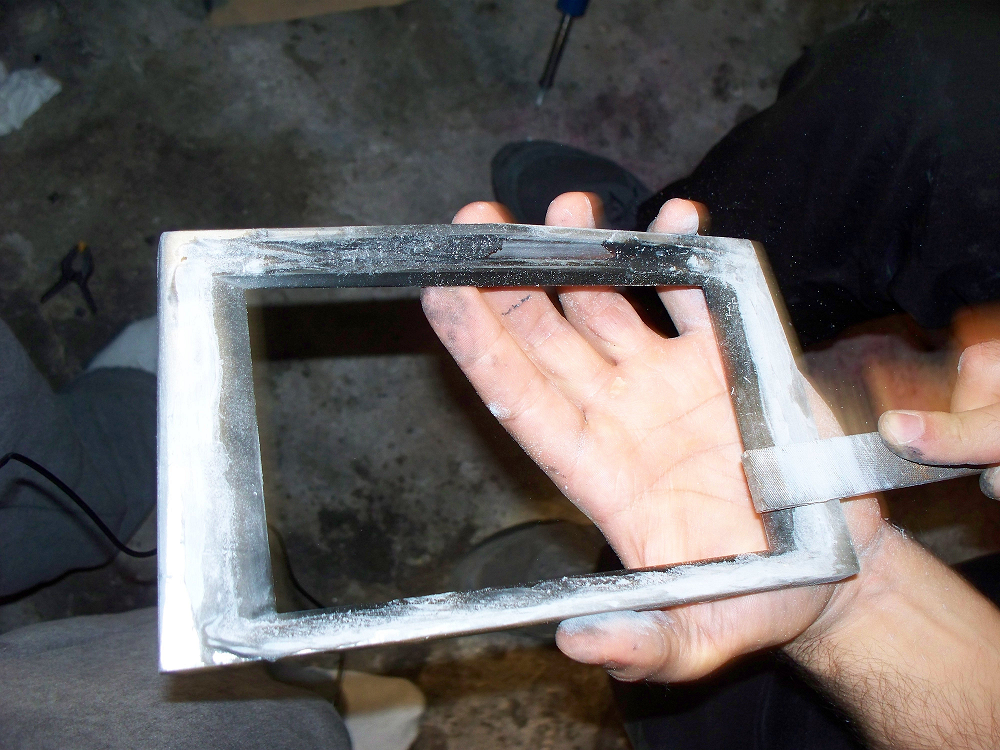

Similar deal, different car. Again, a custom bezel is required to adapt an arbitray shape to the factory dash
![](astra/astramain.jpg)
![](astra/build2.png)
![](astra/build1.png)
![](astra/build3.png)
![](astra/installed1.png)
![](astra/installed3.png)
